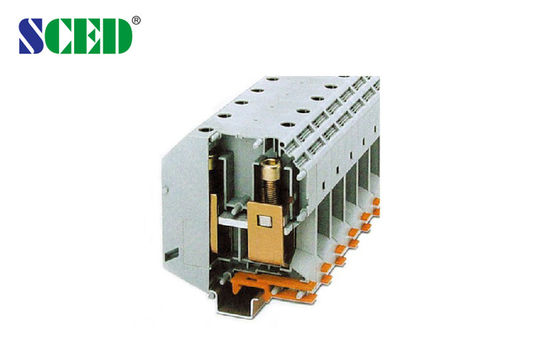

Terminal Width 31.0mm Din Rail Terminal Blocks 600V 285A AWG 2 - 4 / 0

Terminal Width 31.0mm Din Rail Terminal Blocks 600V 285A AWG 2 - 4 / 0

Terminal Width 31.0mm   Din Rail Terminal Blocks   600V 285A   AWG 2 - 4 / 0

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-H150

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Terminal Width 31.0mm Din Rail Terminal Blocks 600V 285A AWG 2 - 4 / 0



Detailed product Description:



Terminal Width: 31.0mm, 600V 285A, AWG:2-4/0, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks



Terminal Width 31.0mm   Din Rail Terminal Blocks   600V 285A   AWG 2 - 4 / 0



Parameter and Drawing Specifications:

Description Color Type
Terminal Grey TR-H150

Terminal Width 31.0mm   Din Rail Terminal Blocks   600V 285A   AWG 2 - 4 / 0   End Cover Grey





Terminal Width 31.0mm   Din Rail Terminal Blocks   600V 285A   AWG 2 - 4 / 0   Fixed Bridge



EB 2-31/TR-H Imax: 232A

FBI 3-31/TR-H

Terminal Width 31.0mm   Din Rail Terminal Blocks   600V 285A   AWG 2 - 4 / 0   Insertion Bridge





Terminal Width 31.0mm   Din Rail Terminal Blocks   600V 285A   AWG 2 - 4 / 0   Separating Plate





Terminal Width 31.0mm   Din Rail Terminal Blocks   600V 285A   AWG 2 - 4 / 0   Partition Plate




Zack Strip White ZB10
Screwdriver
Rail Material aluminum
Dimensions mm 31/100
Height (U35: 7.5/U35: 15G 32) mm 118.5/116
Screw / Torque Nm M10 / 25-30
Stripping Length mm 40
IEC Technical Data
Max. Load Current / Cross Section A / mm2 309 / 150
Rated Surge Voltage / Contamination Class KV / - 8 / 3
Surge Voltage Category





Terminal Width 31.0mm   Din Rail Terminal Blocks   600V 285A   AWG 2 - 4 / 0



Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



Terminal Width 31.0mm   Din Rail Terminal Blocks   600V 285A   AWG 2 - 4 / 0
