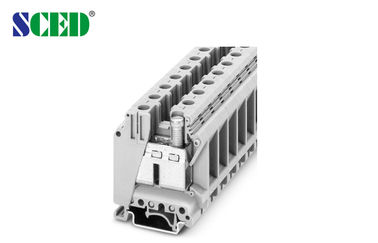

Terminal width 15.2mm 600V 150A AWG 18 - 1 / 0 Din Rail Terminal Blocks

Terminal width 15.2mm 600V 150A AWG 18 - 1 / 0 Din Rail Terminal Blocks

Terminal width 15.2mm 600V 150A AWG 18 - 1 / 0 Din Rail Terminal Blocks

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-35N-01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Terminal width 15.2mm 600V 150A AWG 18 - 1/0 Din Rail Terminal Blocks



Detailed product Description:



Terminal width: 15.2mm, 600V 150A, AWG:18-1/0, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks



Terminal width 15.2mm 600V 150A AWG 18 - 1 / 0 Din Rail Terminal Blocks





Parameter and Drawing Specifications:

Description Color Type
Terminal Grey TR-35N-01

Terminal width 15.2mm 600V 150A AWG 18 - 1 / 0 Din Rail Terminal BlocksEnd Cover Grey



D-TR-4

Terminal width 15.2mm 600V 150A AWG 18 - 1 / 0 Din Rail Terminal BlocksFixed Bridge



FBI 2-15 Imax: 150A

FBI 3-15

Terminal width 15.2mm 600V 150A AWG 18 - 1 / 0 Din Rail Terminal BlocksInsertion Bridge



EB 10-15 Imax:110A

Terminal width 15.2mm 600V 150A AWG 18 - 1 / 0 Din Rail Terminal BlocksSeparating Plate



TS-K

Terminal width 15.2mm 600V 150A AWG 18 - 1 / 0 Din Rail Terminal BlocksPartition Plate



TP-TR-35(7.5mm thick)
Zack Strip White ZB10
Screwdriver SZS 1.0×6.5
Rail Material aluminum
Dimensions mm 15.2/50/-
Height (U35: 7.5/U35: 15G 32) mm 62/69.5/67
Screw / Torque Nm M6 / 3.2-3.7
Stripping Length mm 16
IEC Technical Data
Max. Load Current / Cross Section A / mm2 150 / 50
Rated Surge Voltage / Contamination Class KV / - 8 / 3
Surge Voltage Category





Terminal width 15.2mm 600V 150A AWG 18 - 1 / 0 Din Rail Terminal Blocks



Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
