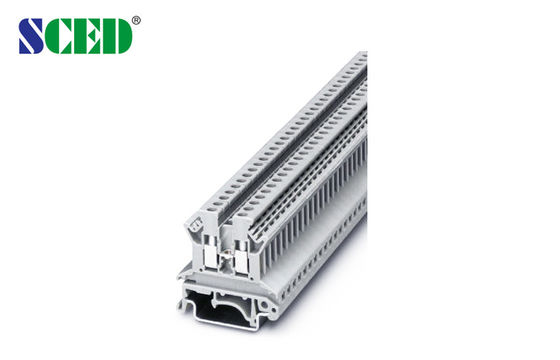

Din Rail Terminal Blocks Terminal width 5.2mm 300V 20A AWG28 - 12

Din Rail Terminal Blocks Terminal width 5.2mm 300V 20A AWG28 - 12

  • Din Rail Terminal Blocks   Terminal width 5.2mm    300V 20A    AWG28 - 12
Din Rail Terminal Blocks   Terminal width 5.2mm    300V 20A    AWG28 - 12
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-2.5N
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

din rail mount terminal blocks

,

din rail terminals blocks

Din Rail Terminal Blocks Terminal width 5.2mm 300V 20A AWG28 - 12



Detailed product Description:



Terminal width: 5.2mm, 300V 20A, AWG28-12, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks



Din Rail Terminal Blocks   Terminal width 5.2mm    300V 20A    AWG28 - 12   0





Parameter and Drawing Specifications:

Description Color Type
Terminal Grey TR-2.5N

Din Rail Terminal Blocks   Terminal width 5.2mm    300V 20A    AWG28 - 12   1End Cover Grey



D-TR-2.5

Din Rail Terminal Blocks   Terminal width 5.2mm    300V 20A    AWG28 - 12   2Fixed Bridge



FBRI 10-5N Imax: 24A

Din Rail Terminal Blocks   Terminal width 5.2mm    300V 20A    AWG28 - 12   3Insertion Bridge



EBL 10-5 Imax: 24A

Din Rail Terminal Blocks   Terminal width 5.2mm    300V 20A    AWG28 - 12   4Separating Plate



TS-KK3

Din Rail Terminal Blocks   Terminal width 5.2mm    300V 20A    AWG28 - 12   5Partition Plate



ATP-TR
Zack Strip White ZB5
Screwdriver SZS0.6×3.5
Rail Material aluminum
Dimensions mm 5.2/42.5/1.5
Height (U35: 7.5/U35: 15G 32) mm 42/49.5/47
Screw / Torque Nm M3 / 0.6-0.8
Stripping Length mm 7
IEC Technical Data
Max. Load Current / Cross Section A / mm2 24/ 2.5
Rated Surge Voltage / Contamination Class KV / - 8 / 3
Surge Voltage Category





Din Rail Terminal Blocks   Terminal width 5.2mm    300V 20A    AWG28 - 12   6





Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.
