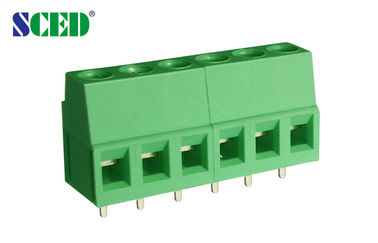

Pitch 5.0mm 300V 10A PCB Terminal block Raising Series Stackable Design

Pitch 5.0mm 300V 10A PCB Terminal block Raising Series Stackable Design

  • Pitch 5.0mm 300V 10A PCB Terminal block Raising Series Stackable Design
Pitch 5.0mm 300V 10A PCB Terminal block Raising Series Stackable Design
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ500-04-T1
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

pcb screw terminal blocks

,

pcb terminal block connectors

Pitch 5.0mm 300V 10A PCB Terminal block Raising Series Stackable Design





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3





Pitch 5.0mm 300V 10A PCB Terminal block Raising Series Stackable Design 0





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Pitch 5.0mm 300V 10A PCB Terminal block Raising Series Stackable Design 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 5.0mm 300V 10A PCB Terminal block Raising Series Stackable Design 2
