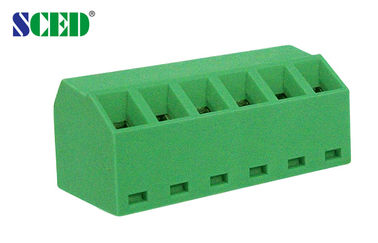

45 Degree Wire Inlet Screw Type 10A 3.81mm PA66 Housing Different Colors

45 Degree Wire Inlet Screw Type 10A 3.81mm PA66 Housing Different Colors

45 Degree Wire Inlet  Screw Type  10A  3.81mm  PA66 Housing  Different Colors

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ381-11

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

45 Degree Wire Inlet  Screw Type  10A  3.81mm  PA66 Housing  Different Colors





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10
Wire Range AWG 16-24
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 10 200 / 10 400 / 10
Rated Surge Voltage KV 2.5 2.5 2.5
Rated Connecting Capacity mm2 1.0
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.2
Stripping Length mm 4-5
Screw / Torque / lbf.in M2 / 1.8-2.0





45 Degree Wire Inlet  Screw Type  10A  3.81mm  PA66 Housing  Different Colors



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





45 Degree Wire Inlet  Screw Type  10A  3.81mm  PA66 Housing  Different Colors





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

45 Degree Wire Inlet  Screw Type  10A  3.81mm  PA66 Housing  Different Colors
