| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TJ381-08 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| High Light: | pcb terminal block connectors,pcb mount terminal block |
||
|---|---|---|---|

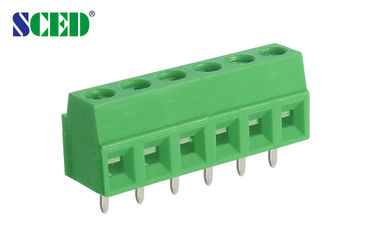

Pitch 3.5mm PCB Terminal blocks 300V 10A 2P - 28P Available
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | ||
| Wire Range AWG | 16-24 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 10 | 200 / 10 | 400 / 10 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Rated Connecting Capacity mm2 | 1.0 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.3 | ||
| Stripping Length mm | 4-5 | ||
| Screw / Torque / lbf.in | M2 / 1.8-2.0 | ||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
