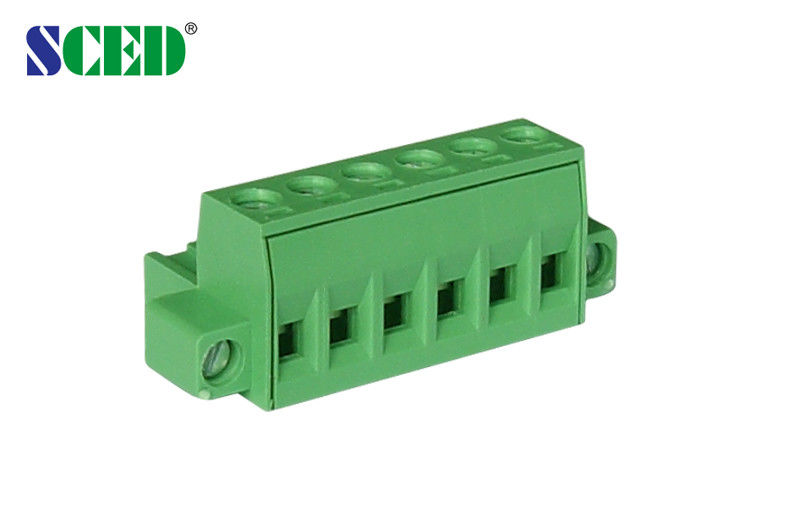

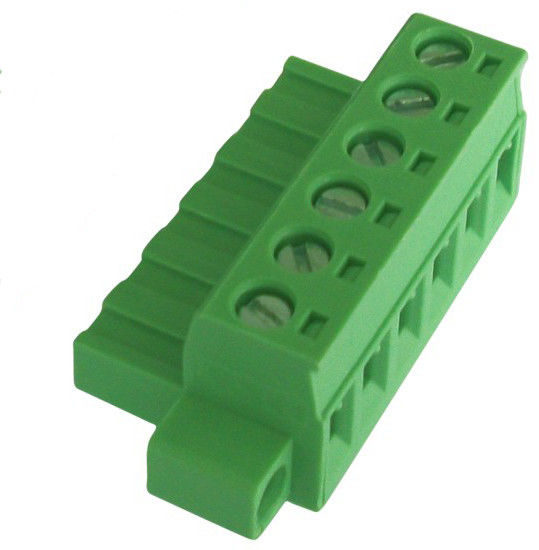

Plug Female Pitch 5.08mm Plug - in Terminal Block 300V 18A 2P - 22P

Plug Female Pitch 5.08mm Plug - in Terminal Block 300V 18A 2P - 22P

    • Plug   Female    Pitch 5.08mm   Plug - in Terminal Block     300V 18A    2P - 22P
    • Plug   Female    Pitch 5.08mm   Plug - in Terminal Block     300V 18A    2P - 22P
  • Plug   Female    Pitch 5.08mm   Plug - in Terminal Block     300V 18A    2P - 22P

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TP508P-00F

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description

    Plug Female Pitch 5.08mm Plug - in Terminal Block 300V 18A 2P - 22P

    Plug   Female    Pitch 5.08mm   Plug - in Terminal Block     300V 18A    2P - 22P



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/18   300/18
    Wire Range AWG 12-30   12-30
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 18 320 / 18 630 / 18
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Contactor / Plating Phosphor Bronze / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 7
    Screw / Torque / lbf.in M3 / 4.4-5.3





    Plug   Female    Pitch 5.08mm   Plug - in Terminal Block     300V 18A    2P - 22P



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





    Competitive Advantage:



    • Stable good quality
    • Competitive price
    • Quickly response
    • Full range products for selection
    • Flexible to design the exact part per customers’ demand





    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Tag:

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





    Plug   Female    Pitch 5.08mm   Plug - in Terminal Block     300V 18A    2P - 22P
