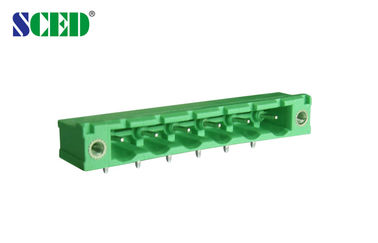

Pitch 7.62mm Plug - in Terminal Block 300V 18A Header Male Sockets 2 - 14P

Pitch 7.62mm Plug - in Terminal Block 300V 18A Header Male Sockets 2 - 14P

  • Pitch 7.62mm   Plug - in Terminal Block   300V 18A   Header   Male Sockets    2 - 14P
Pitch 7.62mm   Plug - in Terminal Block   300V 18A   Header   Male Sockets    2 - 14P
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508H-76VF
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

power distribution terminal block

,

power terminal block connector

Pitch 7.62mm Plug - in Terminal Block 300V 18A Header Male Sockets 2 - 14P



■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels



This male header match with female plugs’ series: TP508P-76F, TP508P-77F, TP508P-78F, TP508P-79F



Pitch 7.62mm   Plug - in Terminal Block   300V 18A   Header   Male Sockets    2 - 14P 0



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/18
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm 1.0 x 1.0





Pitch 7.62mm   Plug - in Terminal Block   300V 18A   Header   Male Sockets    2 - 14P 1



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





Pitch 7.62mm   Plug - in Terminal Block   300V 18A   Header   Male Sockets    2 - 14P 2
