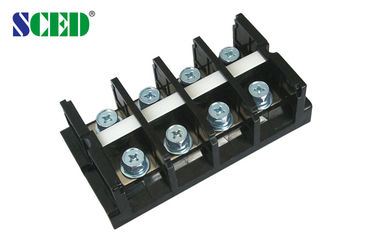

High Current Terminal connector Pitch 28.00mm 600V 150A any poles available

High Current Terminal connector Pitch 28.00mm 600V 150A any poles available

  •   High Current Terminal connector  Pitch 28.00mm   600V 150A   any poles available
  High Current Terminal connector  Pitch 28.00mm   600V 150A   any poles available
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE , CQC
Model Number: TR150-03-BM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

pcb wire terminals

,

power terminal block

High Current Terminal connector Pitch 28.00mm 600V 150A any poles available





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 150 600 / 150
Wire Range AWG 2/0-20 2/0-20
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /150 1000 / 150 1000 / 150
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 60
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 12-14
Screw Torque mm M8 / 31-40





  High Current Terminal connector  Pitch 28.00mm   600V 150A   any poles available  0



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



  High Current Terminal connector  Pitch 28.00mm   600V 150A   any poles available  1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
