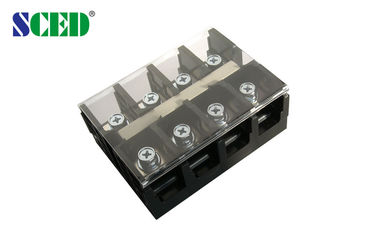

Pitch 27.00mm High Current Terminal connector 600V 150A any poles available

Pitch 27.00mm High Current Terminal connector 600V 150A any poles available

  • Pitch 27.00mm  High Current Terminal connector  600V 150A   any poles available
Pitch 27.00mm  High Current Terminal connector  600V 150A   any poles available
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE, CQC
Model Number: TR150-02-BCM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

pcb wire terminals

,

wiring terminal blocks

Pitch 27.00mm High Current Terminal connector 600V 150A any poles available





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 150 600 / 150
Wire Range AWG 2/0-20 2/0-20
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /150 1000 / 150 1000 / 150
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 60
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 12-14
Screw Torque mm M8 / 31-40





Pitch 27.00mm  High Current Terminal connector  600V 150A   any poles available   0







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch 27.00mm  High Current Terminal connector  600V 150A   any poles available   1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 27.00mm  High Current Terminal connector  600V 150A   any poles available   2
