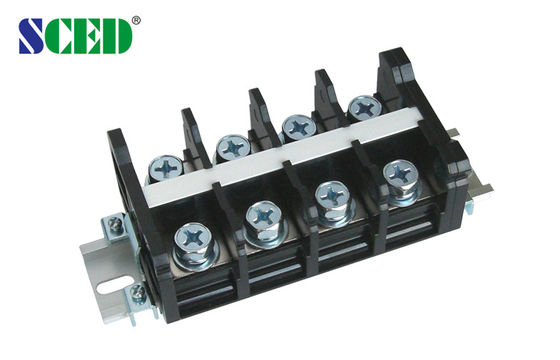

Pitch 26.00mm High Current Terminal connector 600V 101A any poles available

Pitch 26.00mm High Current Terminal connector 600V 101A any poles available

Pitch 26.00mm   High Current Terminal connector  600V 101A   any poles available

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE, CQC
Model Number: TR100-01-FaM0-A3

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Pitch 26.00mm High Current Terminal connector 600V 101A any poles available





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 101 600 / 101
Wire Range AWG 2-20 2-20
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /100 1000 / 100 1000 / 100
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 38
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 10-12
Screw Torque mm M8 / 31-40





Pitch 26.00mm   High Current Terminal connector  600V 101A   any poles available





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Pitch 26.00mm   High Current Terminal connector  600V 101A   any poles available



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 26.00mm   High Current Terminal connector  600V 101A   any poles available
