Header Plug - in Terminal Block Male Sockets Pitch 5.08mm 300V 18A 2 - 22P

Header Plug - in Terminal Block Male Sockets Pitch 5.08mm 300V 18A 2 - 22P

Header  Plug - in Terminal Block   Male Sockets   Pitch 5.08mm  300V 18A   2 - 22P

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508H-00VF

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

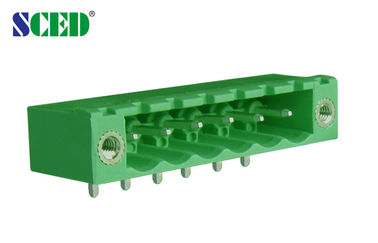

Header Plug - in Terminal Block Male Sockets Pitch 5.08mm 300V 18A 2 - 22P

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels



This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F

Header  Plug - in Terminal Block   Male Sockets   Pitch 5.08mm  300V 18A   2 - 22P



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/18
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 18 400 / 18 500 / 18
Rated Surge Voltage KV 4 4 4
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm 1.0 x 1.0



Header  Plug - in Terminal Block   Male Sockets   Pitch 5.08mm  300V 18A   2 - 22P



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors



Header  Plug - in Terminal Block   Male Sockets   Pitch 5.08mm  300V 18A   2 - 22P
