Plug - in Terminal Block Pitch 3.50mm 300V 8A 2P - 20P Plug Female Sockets

Plug - in Terminal Block Pitch 3.50mm 300V 8A 2P - 20P Plug Female Sockets

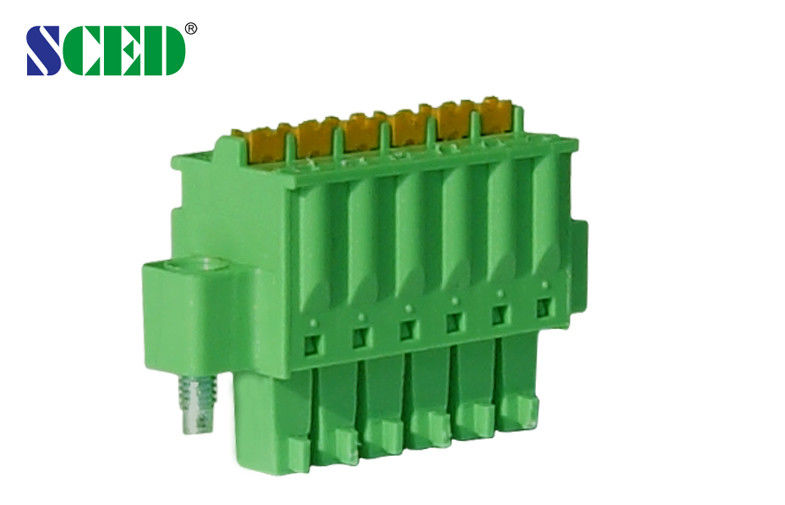

Plug - in Terminal Block   Pitch 3.50mm  300V 8A  2P - 20P   Plug   Female Sockets

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381P-23F

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Plug - in Terminal Block Pitch 3.50mm 300V 8A 2P - 20P Plug Female Sockets



■Single Level; □Double Levels; □Triple Levels



This plug match with male sockets’ series: TP381H-20F, TP381H-20VF, TP381H-22F, TP381H-22VF



Plug - in Terminal Block   Pitch 3.50mm  300V 8A  2P - 20P   Plug   Female Sockets





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/8
Wire Range AWG 16-30
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Stainless Steel / -
Contactor / Plating Phosphor Bronze / Tin Plated
Other Data
Stripping Length mm 9-10
Screw / Torque / lbf.in





Plug - in Terminal Block   Pitch 3.50mm  300V 8A  2P - 20P   Plug   Female Sockets



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





Plug - in Terminal Block   Pitch 3.50mm  300V 8A  2P - 20P   Plug   Female Sockets
