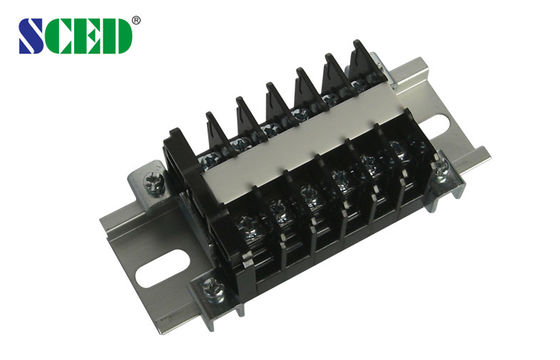

High Current Terminal connector Pitch 8.00mm 600V 10A any poles available

High Current Terminal connector Pitch 8.00mm 600V 10A any poles available

    •  High Current Terminal connector  Pitch 8.00mm  600V 10A   any poles available
  •  High Current Terminal connector  Pitch 8.00mm  600V 10A   any poles available

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE, CQC
    Model Number: TR10-00-FaM0

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    High Light:

    pcb wire terminals

    ,

    wiring terminal blocks

    High Current Terminal connector Pitch 8.00mm 600V 10A any poles available





    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 10 600 / 10
    Wire Range AWG 16-24 16-24
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 800 /10 1000 / 10 1000 / 10
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 1.25
    Material
    Insulation Material / Inflammability Class PC / UL94, V-0
    Conduction Board/ Plating Brass /Nickel Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 5-6
    Screw Torque mm M3 / 5.3-7





     High Current Terminal connector  Pitch 8.00mm  600V 10A   any poles available  0



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:





     High Current Terminal connector  Pitch 8.00mm  600V 10A   any poles available  1



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



     High Current Terminal connector  Pitch 8.00mm  600V 10A   any poles available  2
