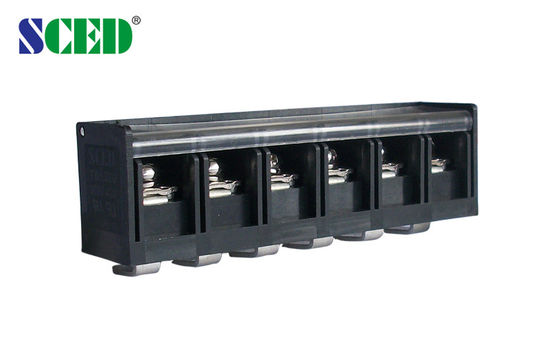

Pitch 13.00mm 600V 40A 2 - 18P Barrier Terminal Block Power Terminal Block

Pitch 13.00mm 600V 40A 2 - 18P Barrier Terminal Block Power Terminal Block

  • Pitch  13.00mm   600V  40A   2 - 18P   Barrier Terminal Block   Power Terminal Block
Pitch  13.00mm   600V  40A   2 - 18P   Barrier Terminal Block   Power Terminal Block
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: TB1300-03V-C
Model Number: UL, CE, CQC
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

barrier type terminal block

,

pcb terminal blocks

Pitch 13.00mm 600V 40A 2 - 18P Barrier Terminal Block Power Terminal Block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
Wire Range AWG 20-8 20-8 20-8
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.5
Stripping Length mm 10-11
Screw / Torque / lbf.in M 4 / 10.6-13







Pitch  13.00mm   600V  40A   2 - 18P   Barrier Terminal Block   Power Terminal Block 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch  13.00mm   600V  40A   2 - 18P   Barrier Terminal Block   Power Terminal Block 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch  13.00mm   600V  40A   2 - 18P   Barrier Terminal Block   Power Terminal Block 2
