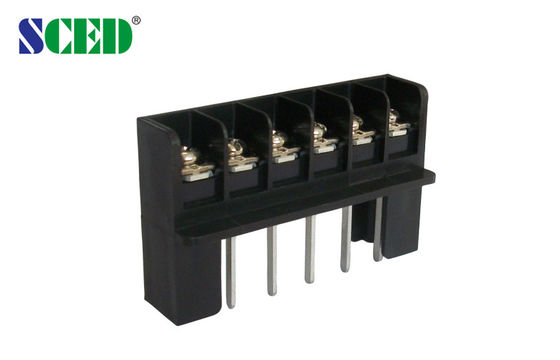

Barrier Terminal block Pitch 11.00mm 600V 30A 3 - 14P power terminal block

Barrier Terminal block Pitch 11.00mm 600V 30A 3 - 14P power terminal block

 Barrier Terminal block   Pitch  11.00mm   600V  30A    3 - 14P   power terminal block

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE, CQC
Model Number: TB1100-03

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Barrier Terminal block Pitch 11.00mm 600V 30A 3 - 14P power terminal block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 30   600 / 5
Wire Range AWG 10-22   12-22
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 41 800 / 41 1000 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 1.6x2.9
Stripping Length mm 9-10
Screw / Torque / lbf.in M4 / 10-11







 Barrier Terminal block   Pitch  11.00mm   600V  30A    3 - 14P   power terminal block







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





 Barrier Terminal block   Pitch  11.00mm   600V  30A    3 - 14P   power terminal block





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





 Barrier Terminal block   Pitch  11.00mm   600V  30A    3 - 14P   power terminal block
