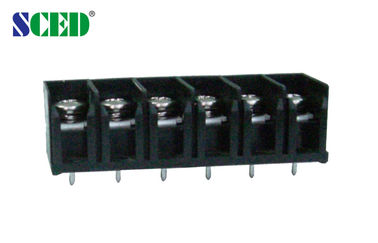

Pitch 10.00mm 300V 20A 2 - 20P Barrier Terminal Block Power Terminal Block

Pitch 10.00mm 300V 20A 2 - 20P Barrier Terminal Block Power Terminal Block

  • Pitch  10.00mm   300V  20A   2 - 20P Barrier Terminal Block   Power Terminal Block
Pitch  10.00mm   300V  20A   2 - 20P Barrier Terminal Block   Power Terminal Block
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE,CQC
Model Number: TB1000-01
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

electrical terminal block

,

pcb terminal blocks

Pitch 10.00mm 300V 20A 2 - 20P Barrier Terminal Block Power Terminal Block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 15   300 / 10
Wire Range AWG 16-24   16-24
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 17.5 630 / 17.5 8000 / 17.5
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.8
Stripping Length mm 9-10
Screw / Torque / lbf.in M 4 / 10-12





Pitch  10.00mm   300V  20A   2 - 20P Barrier Terminal Block   Power Terminal Block 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch  10.00mm   300V  20A   2 - 20P Barrier Terminal Block   Power Terminal Block 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch  10.00mm   300V  20A   2 - 20P Barrier Terminal Block   Power Terminal Block 2
