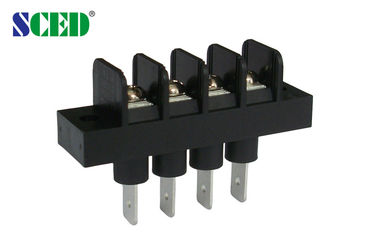

Pitch 9.525mm 300V 20A 2-16P Barrier Terminal Block Power Terminal Block

Pitch 9.525mm 300V 20A 2-16P Barrier Terminal Block Power Terminal Block

Pitch  9.525mm   300V  20A  2-16P  Barrier Terminal Block  Power Terminal Block

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE,CQC
Model Number: TB952-05F-D3

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Pitch 9.525mm 300V 20A 2-16P Barrier Terminal Block Power Terminal Block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20   300 / 10
Wire Range AWG 12-22   12-22
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 32 800 / 32 1000 / 32
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.2x6.8
Stripping Length mm 8-9
Screw / Torque / lbf.in M 3.5 / 7-10







Pitch  9.525mm   300V  20A  2-16P  Barrier Terminal Block  Power Terminal Block





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch  9.525mm   300V  20A  2-16P  Barrier Terminal Block  Power Terminal Block





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch  9.525mm   300V  20A  2-16P  Barrier Terminal Block  Power Terminal Block
