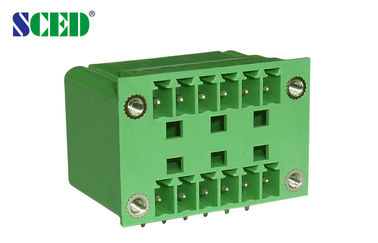

Male Sockets Header , Pitch 3.81mm 300V 8A 2 × 2P - 20 × 2P Pluggable Terminal Block

Male Sockets Header , Pitch 3.81mm 300V 8A 2 × 2P - 20 × 2P Pluggable Terminal Block

Male Sockets  Header , Pitch  3.81mm 300V 8A 2 × 2P - 20 × 2P Pluggable Terminal Block

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381H-01VF

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Male Sockets Header , Pitch 3.81mm 300V 8A 2 × 2P - 20 × 2P  Pluggable Terminal Block





■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double Levels; □Triple Levels



This male socket match with female plug series: TP381P-00F, TP381P-01F, TP381P-02F, TP381P-03F, TP381P-04F



Male Sockets  Header , Pitch  3.81mm 300V 8A 2 × 2P - 20 × 2P Pluggable Terminal Block



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/8
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.2
Pin Dimension mm

0.8 x 0.8





Male Sockets  Header , Pitch  3.81mm 300V 8A 2 × 2P - 20 × 2P Pluggable Terminal Block



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Male Sockets  Header , Pitch  3.81mm 300V 8A 2 × 2P - 20 × 2P Pluggable Terminal Block
