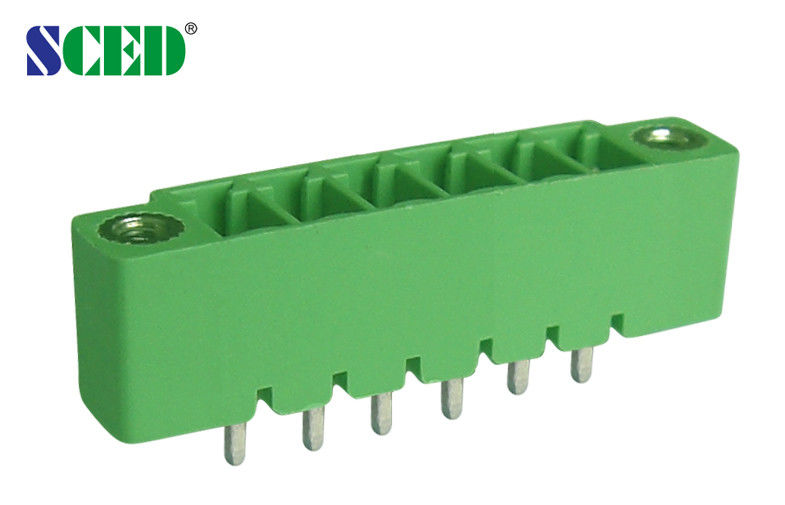

Right Angle Pluggable Terminal Block Header Male Sockets With 300V 8A

Right Angle Pluggable Terminal Block Header Male Sockets With 300V 8A

Right Angle Pluggable Terminal Block Header Male Sockets With 300V 8A

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381H-00F

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description



Right Angle Pluggable Terminal Block Header Male Sockets With 300V 8A









□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels

Right Angle Pluggable Terminal Block Header Male Sockets With 300V 8A





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/8
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.2
Pin Dimension mm 0.8 x 0.8





How to order:

Right Angle Pluggable Terminal Block Header Male Sockets With 300V 8A



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand
  •

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
