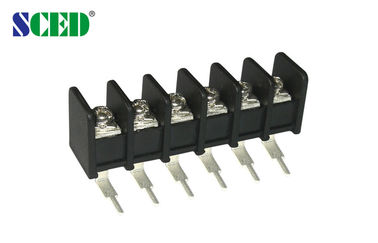

Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB

Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB

    • Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB
  • Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE,CQC
    Model Number: TB825-01V

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    High Light:

    power distribution terminal block

    ,

    electric terminal block



    Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB







    Parameter and Drawing Specifications:



    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 20   300 / 10
    Wire Range AWG 12-26   12-26
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 320 / 32 400 / 32 630 / 32
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 4
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass /Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm φ1.6
    Stripping Length mm 6-7
    Screw / Torque / lbf.in M 3 / 5-7

     Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB 0



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.





    Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB 1





    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Electrical Barrier Power Terminal Blocks Pitch 8.255mm 300V 20A For PCB 2
