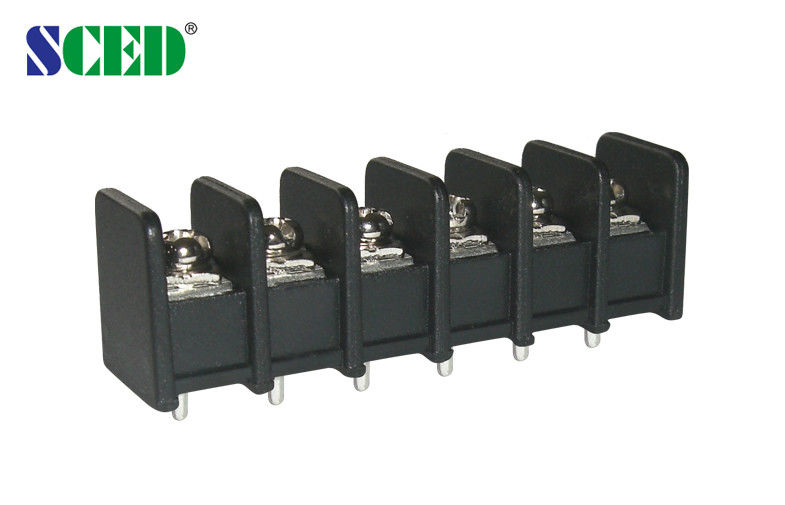

8.255mm Power Terminal Blocks , Terminal Connector Block For Automotive

8.255mm Power Terminal Blocks , Terminal Connector Block For Automotive

8.255mm Power Terminal Blocks , Terminal Connector Block For Automotive

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE,CQC
Model Number: TB825-01-D1

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description



8.255mm Power Terminal Blocks , Terminal Connector Block For Automotive









Parameter and Drawing Specifications:



UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20   300 / 10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 320 / 24 400 / 32 630 / 32
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.6
Stripping Length mm 6-7
Screw / Torque / lbf.in M 3 / 5-7





8.255mm Power Terminal Blocks , Terminal Connector Block For Automotive







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:







8.255mm Power Terminal Blocks , Terminal Connector Block For Automotive





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand





8.255mm Power Terminal Blocks , Terminal Connector Block For Automotive
