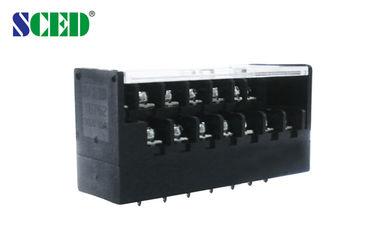

15A Barrier Terminal Block , 300V Power Wiring Terminal Block

15A Barrier Terminal Block , 300V Power Wiring Terminal Block

  • 15A Barrier Terminal Block , 300V Power Wiring Terminal Block
15A Barrier Terminal Block , 300V Power Wiring Terminal Block
Product Details:
Place of Origin: China
Brand Name: SCED
Certification: UL, CE
Model Number: TB762-17-C
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Pitch: 7.62mm
Rated Current: 10A/ 15A Rated Voltage: 300V
Type: Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks Wire Range: 14-22
High Light:

electrical terminal block

,

pcb terminal blocks

15A Barrier Terminal Block , 300V Power Wiring Terminal Block



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.7

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7



15A Barrier Terminal Block , 300V Power Wiring Terminal Block 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



15A Barrier Terminal Block , 300V Power Wiring Terminal Block 1





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



 15A Barrier Terminal Block , 300V Power Wiring Terminal Block 2





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
