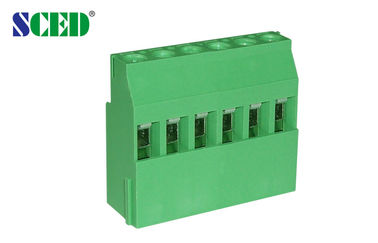

Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A

Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A

Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ508-08V

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Number Of Contacts: 2P-22P
Pitch: 5.08mm Rated Current: 10A
Rated Voltage: 300V Type: PCB Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks





Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A





Type:

PCB Terminal blocks,   PCB screw terminal blocks,              Euro type Raising series

Pitch:

5.08mm

Rated Voltage:

300V

Rated Current:

10A

Standard Color:

Green, other color is available

Number Of Contacts:

2P-24P

Wire Range:

12-26AWG

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc.



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks , PCB screw terminal blocks, Euro type Raising series



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.6

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



How to order:



Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

 Pitch 5.08mm PCB Terminal Blocks Euro Type High Temperature 300V 10A
