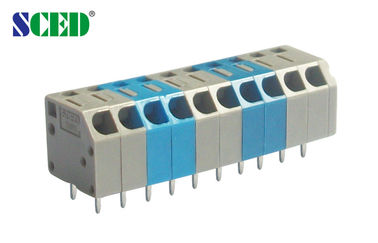

3.50mm Clamp Spring Terminal block , 5A Electrical Terminal Blocks

3.50mm Clamp Spring Terminal block , 5A Electrical Terminal Blocks

    • 3.50mm Clamp Spring Terminal block , 5A Electrical Terminal Blocks
  • 3.50mm Clamp Spring Terminal block , 5A Electrical Terminal Blocks

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ381-15

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Grey
    Number Of Contacts: 2P-28P Pitch: 3.50mm
    Rated Current: 10A Rated Voltage: 300V
    Type: Spring Terminal Block,Spring Terminal Blocks, Spring Clamp Terminal Blocks Wire Range: 14-26(sol) 16-26(str)
    High Light:

    spring clamp terminal block

    ,

    wiring terminal blocks





    3.50mm Clamp Spring Terminal block , 5A Electrical Terminal Blocks



    □Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

    Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory





    How to order:
    3.50mm Clamp Spring Terminal block , 5A Electrical Terminal Blocks 0

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
    Military, Elevator, etc..


    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/10



    300/10

    Wire Range                       AWG

    14-26(sol) 16-26(str)



    14-26(sol) 16-26(str)

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    125 / 10

    250 / 10

    320 / 10

    Rated Surge Voltage                 KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Spring / Plating

    Stainless Steel / -

    Terminal / Plating

    Brass / Tin Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.2

    Stripping Length                    mm

    8-9





    3.50mm Clamp Spring Terminal block , 5A Electrical Terminal Blocks 1



    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
