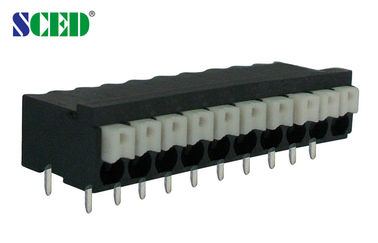

3.50mm 10A Spring Terminal Block For PCB Switch Elevator 2 Pole - 28 Pole

3.50mm 10A Spring Terminal Block For PCB Switch Elevator 2 Pole - 28 Pole

3.50mm 10A Spring Terminal Block For PCB Switch Elevator 2 Pole - 28 Pole

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ381-12V

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Grey
Number Of Contacts: 2P-28P Pitch: 3.50mm
Rated Current: 10A Rated Voltage: 300V
Type: Spring Terminal Block,Screwless Terminal Blocks, Electrical Terminal Blocks Wire Range: 16-22



3.50mm 10A Spring Terminal Block For PCB Switch Elevator 2 Pole - 28 Pole





Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory






How to order:
3.50mm 10A Spring Terminal Block For PCB Switch Elevator 2 Pole - 28 Pole

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10





Wire Range                       AWG

16-22





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 10

250 / 10

400 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

LCP / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.1

Stripping Length                    mm

8-9





3.50mm 10A Spring Terminal Block For PCB Switch Elevator 2 Pole - 28 Pole
