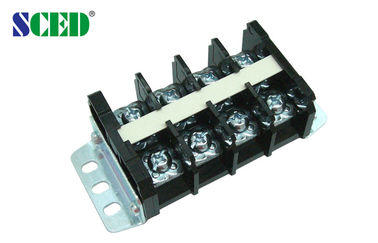

600V 60A 19.00mm Electrical Terminal Blocks , High Current Barrier Terminal Block

600V 60A 19.00mm Electrical Terminal Blocks , High Current Barrier Terminal Block

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Shenzhen, China SCED
Certification: UL, CE
Model Number: TR60-01-BM0

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Wire Inlet: Right Angle Wire Inlet Type: Power Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks
Pitch: 19.00mm Wire Range: 4-20
Rated Voltage: 600V Rated Current: 60A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control


Detailed product Description:

600V 60A 19.00mm Electrical Terminal Blocks, High Current Barrier Terminal Block

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer




How to order:


600V 60A 19.00mm Electrical Terminal Blocks , High Current Barrier Terminal Block
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 60

600 / 60



Wire Range                       AWG

4-20

4-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

14

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

12-15

Screw / Torque                    / lbf.in

M5 / 18-22









600V 60A 19.00mm Electrical Terminal Blocks , High Current Barrier Terminal Block


Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
