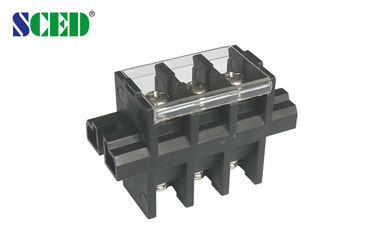

Perforation Power Terminal Blocks , Feed Through Terminal Block 21.0mm Pitch

Perforation Power Terminal Blocks , Feed Through Terminal Block 21.0mm Pitch

Perforation Power Terminal Blocks , Feed Through Terminal Block 21.0mm Pitch

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TD100-01-C

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Power Terminal Block, PCB Screw Terminal Blocks,Electrical Terminal Blocks Pitch: 21.00mm
Number Of Contacts: Any Poles Available Wire Range: 2-20
Rated Voltage: 600V Rated Current: 101A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control


Detailed product Description:

Pitch 21.0mm, 600V 101A, Any poles available, Perforation Power Terminal Blocks, Feed Through Terminal Block , Through Panel Terminal Connectors
■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors




How to order:


Perforation Power Terminal Blocks , Feed Through Terminal Block 21.0mm Pitch

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 101

600 / 101

600 / 5

Wire Range                       AWG

2-20

2-20

2-20

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 101

1000 / 101

1000 / 101

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

25

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

11-12

Screw / Torque                    / lbf.in

M6 / 20-22





Perforation Power Terminal Blocks , Feed Through Terminal Block 21.0mm Pitch




Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
