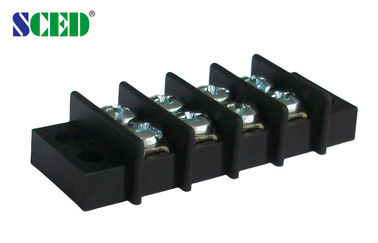

Double Levels 9.525mm Barrier Terminal Block , 300V 20A Electrical Terminal Blocks

Double Levels 9.525mm Barrier Terminal Block , 300V 20A Electrical Terminal Blocks

Double Levels 9.525mm Barrier Terminal Block , 300V 20A Electrical Terminal Blocks

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TB952-01F-T4

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Power Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks Pitch: 9.525mm
Number Of Contacts: 2*2P-30*2P Wire Range: 12-22
Rated Voltage: 300V Rated Current: 20A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Detailed product Description:

Double Levels 9.525mm Barrier Terminal Block, 300V 20A Electrical Terminal Blocks,, Power Terminal Blocks,2*2P-30*2P
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
□Single Level;  ■Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer


How to order:

Double Levels 9.525mm Barrier Terminal Block , 300V 20A Electrical Terminal Blocks



Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/20



300/10

Wire Range                       AWG

12-22



12-22

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 32

320 / 32

320 / 32

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M 3.5 / 7-10









Double Levels 9.525mm Barrier Terminal Block , 300V 20A Electrical Terminal Blocks




Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
