300V 20A PCB Barrier Terminal Block , Pitch 8.255mm Electrical Power Terminal Blocks

300V 20A PCB Barrier Terminal Block , Pitch 8.255mm Electrical Power Terminal Blocks

300V 20A PCB Barrier Terminal Block , Pitch 8.255mm Electrical Power Terminal Blocks

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TB825-01F-D3

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Power Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks Pitch: 8.255mm
Number Of Contacts: 2P-30P Wire Range: 12-26
Rated Voltage: 300V Rated Current: 20A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Detailed product Description:

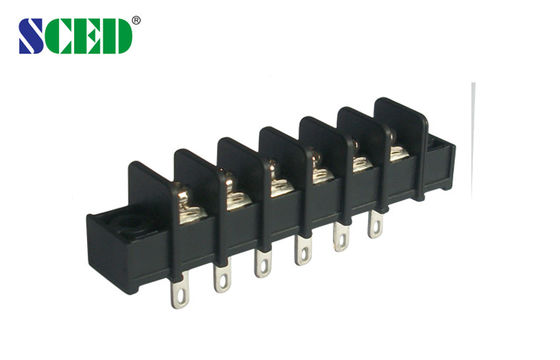

300V 20A PCB Barrier Terminal Block, Pitch 8.255mm Electrical Power Terminal Blocks, 2P-30P

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors


How to order:

300V 20A PCB Barrier Terminal Block , Pitch 8.255mm Electrical Power Terminal Blocks

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/20



300/10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 32

400 / 32

630 / 32

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.2x3.4

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M 3 / 5-7










300V 20A PCB Barrier Terminal Block , Pitch 8.255mm Electrical Power Terminal Blocks300V 20A PCB Barrier Terminal Block , Pitch 8.255mm Electrical Power Terminal Blocks




Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
