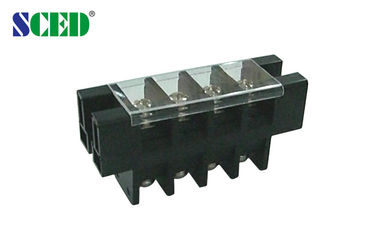

180A Perforation Feed Through Terminal Blocks Connectors Pitch 21.0mm

180A Perforation Feed Through Terminal Blocks Connectors Pitch 21.0mm

180A Perforation Feed Through Terminal Blocks Connectors Pitch 21.0mm

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TD180-01-C

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
Number Of Contacts: Any Poles Available Pitch: 21.0mm
Rated Current: 180A Rated Voltage: 600V
Type: Feed Through Terminal Block,Feed Through Terminal Blocks, Feed Through Terminal Connectors Wire Range: 20-1/0

180A Perforation Feed Through Terminal Blocks Connectors Pitch 21.0mm

■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors


How to order:
180A Perforation Feed Through Terminal Blocks Connectors Pitch 21.0mm


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 180

300 / 180

300 / 10

Wire Range                       AWG

20-1/0

20-1/0

4-20

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 180

800 / 180

1000 / 180

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

8

Material



Insulation Material / Inflammability Class

PBT/ UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

14-18

Screw / Torque                    / lbf.in

M6 / 20-22



180A Perforation Feed Through Terminal Blocks Connectors Pitch 21.0mm


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
