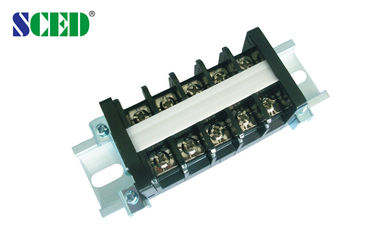

600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block

600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block

600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR30-02-FaM0

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks Pitch: 12.00mm
Number Of Contacts: Any Poles Available Wire Range: 10-20
Rated Voltage: 600V Rated Current: 30A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Detailed product Description:

600V 30A High Current Terminal Connectors, Pitch 12.00mm Barrier Terminal Block


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks




How to order:

600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 35

600 / 30

600 / 5

Wire Range                       AWG

10-20

10-20

10-20

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 /30

800 / 30

1000 / 30

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

5.5

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

9-10

Screw Torque                    mm

M4 / 10.6-13







600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block


Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
