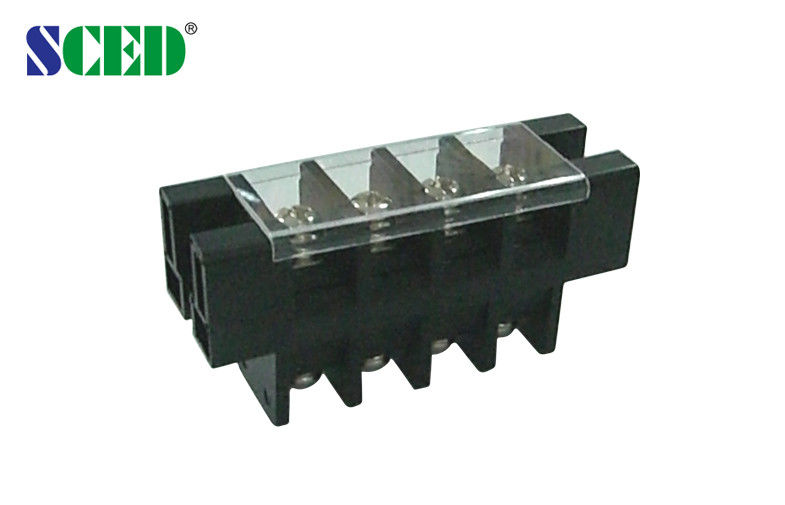

Industrial 75A Through Panel Terminal Block Connectors For Electric Power

Industrial 75A Through Panel Terminal Block Connectors For Electric Power

  • Industrial 75A Through Panel Terminal Block Connectors For Electric Power
Industrial 75A Through Panel Terminal Block Connectors For Electric Power
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TD75-01-C
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
Pitch: 16.0mm Rated Current: 75A
Rated Voltage: 600V Type: Feed Through Terminal Block,Feed Through Terminal Connectors,Electrical Terminal Blocks
High Light:

pcb screw terminal blocks

,

pcb mount terminal block







Industrial 75A Through Panel Terminal Block Connectors For Electric Power







Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection
5. Flexible to design the exact part per customers’ demand



■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks


How to order:
Industrial 75A Through Panel Terminal Block Connectors For Electric Power 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 75

600 / 75

600 / 5

Wire Range                       AWG

4-22

4-22

4-22

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 75

1000 / 75

1000 / 75

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

22

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                    mm

12-13

Screw / Torque                    / lbf.in

M6 / 20-22



Industrial 75A Through Panel Terminal Block Connectors For Electric Power 1
