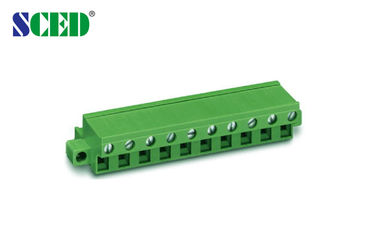

Pitch 7.62mm Single Level Female Plug In Terminal Block Connector 300V 18A , 2P - 12P

Pitch 7.62mm Single Level Female Plug In Terminal Block Connector 300V 18A , 2P - 12P

Pitch 7.62mm Single Level Female Plug In Terminal Block Connector 300V 18A , 2P - 12P

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508P-77F

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 7.62mm
Number Of Contacts: 2P-12P Wire Range: 12-30
Rated Voltage: 300V Rated Current: 18A
Color: Green Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

 Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Detailed product Description:

Pitch 7.62mm Single Level Female Plug In Terminal Block Connector 300V 18A, 2P-12P

■Single Level;  □Double Levels;  □Triple Levels

This female plug match with male sockets’ series: TP508H-76F, TP508H-76VF

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:

Pitch 7.62mm Single Level Female Plug In Terminal Block Connector 300V 18A , 2P - 12P



Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18



300 / 18

Wire Range                       AWG

12-30



12-30

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

400 / 18

630 / 18

1000 / 18

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Zinc Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

10

Screw / Torque                    / lbf.in

M2.5 / 3.0-3.5









Pitch 7.62mm Single Level Female Plug In Terminal Block Connector 300V 18A , 2P - 12P


Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
