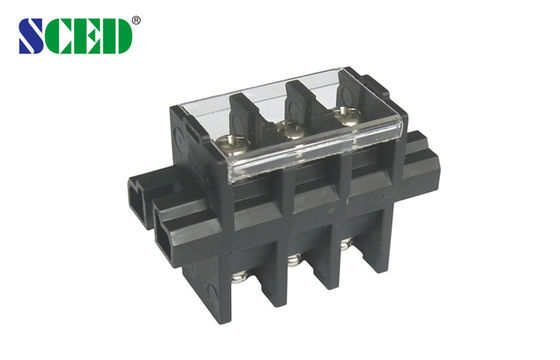

Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin

Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin

  • Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin
Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TD40-01-C
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
Number Of Contacts: 2P-24P Pitch: 13.0mm
Rated Current: 40A Rated Voltage: 600V
Type: Feed Through Terminal Block,Feed Through Terminal Connectors,Electrical Terminal Blocks Wire Range: 8-22
High Light:

pcb terminal block connectors

,

pcb mount terminal block





Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin


■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors

How to order:
Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 40

600 / 40

600 / 5

Wire Range                       AWG

8-22

8-22

8-22

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 40

1000 / 40

1000 / 40

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

8

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                    mm

8-10

Screw / Torque                    / lbf.in

M5 / 16-18



Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin 1



Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
