| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TP508P-76 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks | Pitch: | 7.62mm |
|---|---|---|---|
| Number Of Contacts: | 2P-16P | Wire Range: | 12-30 |
| Rated Voltage: | 300V | Rated Current: | 18A |
| Color: | Green | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | plug in terminal block connector,barrier terminal block connector |
||
Detailed product Description:

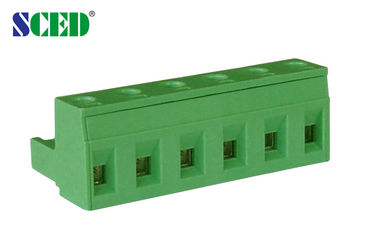

Female 7.62mm 300V 18A Pluggable Terminal Block Connector For Industry Control, Automation, 2P-16P,
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 18 |
| 300 / 18 |
Wire Range AWG | 12-30 |
| 12-30 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 400 / 18 | 630 / 18 | 1000 / 18 |
Rated Surge Voltage KV | 6 | 6 | 6 |
Rated Connecting Capacity mm2 | 2.5 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Phosphor Bronze / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 7 | ||
Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
