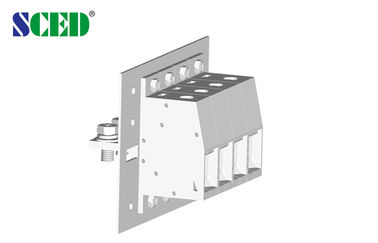

600V 285A Single Deck Through Panel Terminal Block Connector Pitch 30.0mm

600V 285A Single Deck Through Panel Terminal Block Connector Pitch 30.0mm

600V 285A Single Deck Through Panel Terminal Block Connector Pitch 30.0mm

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-150N-03F

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 100K poles each monthly
Contact Now
Detailed Product Description
Type: Through Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors Pitch: 30.00mm
Number Of Contacts: 1P-24P Wire Range: 2-300kcmil
Rated Voltage: 600V Rated Current: 285A
Color: Grey Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


600V 285A Single Deck Through Panel Terminal Block Connector Pitch 30.0mm

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors


How to order:
600V 285A Single Deck Through Panel Terminal Block Connector Pitch 30.0mm


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 285





Wire Range                       AWG

2-300kcmil





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 309

800 / 309

1000 / 309

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

150

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

26

Screw / Torque                    / lbf.in

M10 / 50-60


600V 285A Single Deck Through Panel Terminal Block Connector Pitch 30.0mm


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
