PCB Female Plug In / Pluggable Terminal Block Pitch 5.08mm , 300V 18A , 2P - 24P

PCB Female Plug In / Pluggable Terminal Block Pitch 5.08mm , 300V 18A , 2P - 24P

PCB Female Plug In / Pluggable Terminal Block Pitch 5.08mm , 300V 18A , 2P - 24P

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508P-00

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors Pitch: 5.08mm
Number Of Contacts: 2P-24P Wire Range: 12-30
Rated Voltage: 300V Rated Current: 18A
Color: Green Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Applications

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

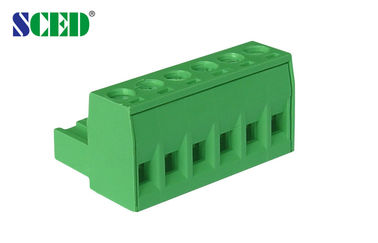

PCB Female Plug In / Pluggable Terminal Block Pitch 5.08mm, 300V 18A, 2P-24P



■Single Level;  □Double Levels;  □Triple Levels



This female plug match with male sockets’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors






How to order:

 PCB Female Plug In / Pluggable Terminal Block Pitch 5.08mm , 300V 18A , 2P - 24P




Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18



300 / 18

Wire Range                       AWG

12-30



12-30

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

320 / 18

630 / 18

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3





Competitive Advantage:

1.Stable good quality
2.Competitive price
3.Quickly response
4.Full range products for selection
5.Flexible to design the exact part per customers’ demand



Contact Details
SCED ELECTORNICS CO., LTD.

Contact Person: Martin Liang

Send your inquiry directly to us (0 / 3000)
