Place of Origin: | Shenzhen, China |
Brand Name: | SCED |
Certification: | UL, CE |
Model Number: | TP381P-23 |
Minimum Order Quantity: | 500 |
---|---|
Price: | Get latest price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-20 working days |
Payment Terms: | T/T |
Supply Ability: | 1KK poles each monthly |
Type: | Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks | Pitch: | 3.50mm |
---|---|---|---|
Number Of Contacts: | 2P-22P | Wire Range: | 16-30 |
Rated Voltage: | 300V | Rated Current: | 8A |
Color: | Green | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
High Light: | electrical terminal blocks,plug in terminal block |

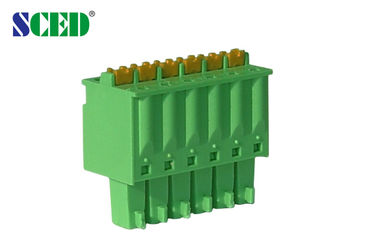

Pitch 3.50mm 300V 8A Pluggable PCB Terminal Block for Electric Power , 2P - 22P
■Single Level; □Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 8 |
|
|
Wire Range AWG |
16-30 |
|
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Rated Connecting Capacity mm2 |
1.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Spring Clamp |
Stainless Steel |
||
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
Other Data |
|
||
Stripping Length mm |
9-10 |
Competitive Advantage:
