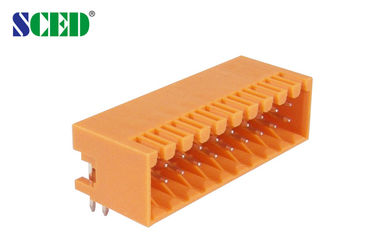

150V 8A 3.50mm Pluggable Terminal Block Connector with Double Levels , Header

150V 8A 3.50mm Pluggable Terminal Block Connector with Double Levels , Header

150V 8A 3.50mm Pluggable Terminal Block Connector with Double Levels , Header

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381H-25F

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 3.50mm
Number Of Contacts: 2*2P-22*2P Rated Voltage: 150V
Rated Current: 8A Color: Green
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Level: Double Levels

Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand





Detailed product Description:



150V 8A 3.50mm Pluggable Terminal Block Connector with Double Levels , Header 2*2P-22*2P





□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

□Single Level;  ■Double Levels;  □Triple Levels





This header match with plug series: TP381P-25F



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:



150V 8A 3.50mm Pluggable Terminal Block Connector with Double Levels , Header





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

150 / 8





IEC Technical Data







Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

63 / 8

125 / 8

250 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

1.2

Pin Dimension                      mm

0.8 x 0.8







150V 8A 3.50mm Pluggable Terminal Block Connector with Double Levels , Header
