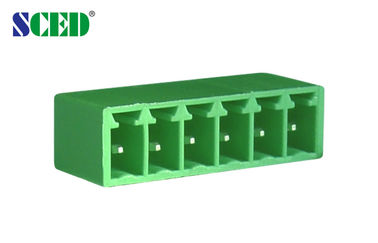

Header , Male Sockets , Pitch : 3.81mm , 300V 8A , 2P-22P , Pluggable Terminal Blocks , Plug-in Terminal Blocks

Header , Male Sockets , Pitch : 3.81mm , 300V 8A , 2P-22P , Pluggable Terminal Blocks , Plug-in Terminal Blocks

Header , Male Sockets , Pitch : 3.81mm , 300V 8A , 2P-22P , Pluggable Terminal Blocks , Plug-in Terminal Blocks

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381H-00V

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks Pitch: 3.81mm
Number Of Contacts: 2P-22P Rated Voltage: 300V
Rated Current: 8A Color: Green
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Level: Single Level


Detailed product Description:

Header, Male Sockets, Pitch: 3.81mm, 300V 8A, 2P-22P, Sockets, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks






How to order:

Header , Male Sockets , Pitch : 3.81mm , 300V 8A , 2P-22P , Pluggable Terminal Blocks , Plug-in Terminal Blocks

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

1.2

Pin Dimension                      mm

0.8 x 0.8









Header , Male Sockets , Pitch : 3.81mm , 300V 8A , 2P-22P , Pluggable Terminal Blocks , Plug-in Terminal Blocks


Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
