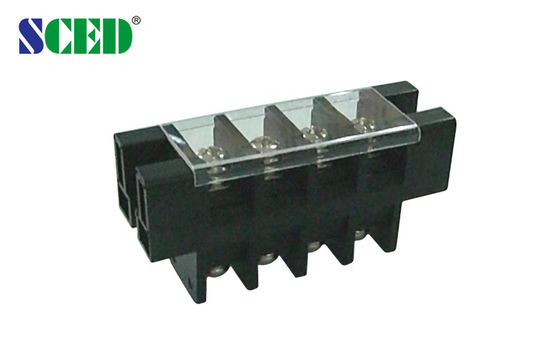

Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A

Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A

    • Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A
  • Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TD180-01-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 21.0mm
    Number Of Contacts: Any Poles Available Wire Range: 20-1/0
    Rated Voltage: 600V Rated Current: 180A
    Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
    High Light:

    barrier terminal block connector

    ,

    pcb terminal block connector

    Detailed product Description:

    Single Deck Through Panel Terminal Block Connector Pitch 21.0mm, 600V 180A
    Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

    ■Single Deck;  □Double decks;  □Triple decks
    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





    How to order:


    Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A 0

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


    Parameter and Drawing Specifications:


    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 180

    300 / 180

    300 / 10

    Wire Range                       AWG

    20-1/0

    20-1/0

    4-20

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    630 / 180

    800 / 180

    1000 / 180

    Rated Surge Voltage                 KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    8

    Material



    Insulation Material / Inflammability Class

    PBT/ UL94, V-0

    Conduction Board / Plating

    Copper / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    14-18

    Screw / Torque                    / lbf.in

    M6 / 20-22






    Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A 1




    Competitive Advantage:


    1.    Stable good quality

    2.    Competitive price

    3.    Quickly response

    4.    Full range products for selection

    5.    Flexible to design the exact part per customers’ demand
