| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TR-KG50N |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Applications: | Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev | Color: | Green & Yellow |
|---|---|---|---|
| Deck: | Single Deck | Type: | Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks |
| Width: | 20.0mm | Wire Range: | 6-0 |
| High Light: | rail mounted terminal blocks,din rail mount terminal blocks |
||

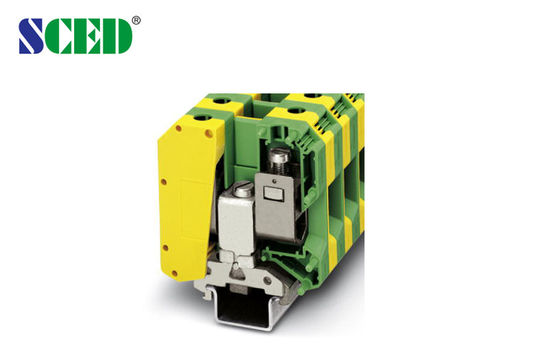

PCB Din Rail Terminal Blocks With Right Angle Wire Inlet , Width 20.0mm
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
Detailed product Description:
Din Rail Mounted Terminal Blocks with Right angle wire inlet , Width 20.0mm
Terminal Width: 20.0mm, AWG:6-0, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green & Yellow. Other colors also available, please refer to below How to Order and select the color you want.
Ground terminal blocks, Din rail terminal blocks, rail terminal connectors, General terminal blocks, Electrical terminal Blocks
How to order:
Parameter and Drawing Specifications:
|
Description Color |
Type |
|
Terminal Green & Yellow |
TR-KG50N |
|
Zack Strip White |
ZB10 SZS1.2x8.0 |
|
Rail Material |
Aluminum / Steel |
|
Dimensions |
20/70.5 |
|
Height (U35: 7.5/U35: 15G 32) mm |
-/83.5/81.5 |
|
Wire Fixing Screw / Torque Nm |
M6 / 6-8 |
|
Center Fixing Screw / Torque Nm |
M6 / 6-8 |
|
Stripping Length mm |
24 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
