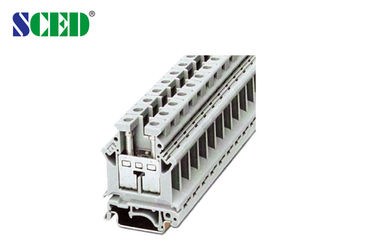

12.2mm Width Waterproof Din Rail Terminal Blocks For Electric Power

12.2mm Width Waterproof Din Rail Terminal Blocks For Electric Power

  • 12.2mm Width Waterproof Din Rail Terminal Blocks For Electric Power
12.2mm Width Waterproof Din Rail Terminal Blocks For Electric Power
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-16N
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev Color: Grey
Deck: Double Decks Type: Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
Width: 12.2mm Wire Range: 22-4
High Light:

rail mounted terminal blocks

,

din rail terminals blocks



12.2mm Width Waterproof Din Rail Terminal Blocks For Electric Power





Detailed product Description:

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
□Single Deck;  ■Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks




How to order:

12.2mm Width Waterproof Din Rail Terminal Blocks For Electric Power 0

Applications:


Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..


Parameter and Drawing Specifications:


Description                    Color

Type

Terminal                       Grey

TR-16N

End Cover                      Grey


D-TR-3/16

Fixed Bridge


FBI 10-12        Imax: 101A

Insertion Bridge


EB 10-12        Imax: 70A

Separating Plate


TS-K

Partition Plate


ATP-TR

Zack Strip                      White

ZB10

Screwdriver

SZS 1.0×4.0

Rail Material

aluminum

Dimensions                             mm

12.2/42.5/2.0

Height (U35: 7.5/U35: 15G 32)              mm

54/61.5/59

Screw / Torque                           Nm

M4 / 1.5-1.8

Stripping Length                          mm

11

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

             101 / 25

Rated Surge Voltage / Contamination Class    KV / -

              8 / 3

Surge Voltage Category

               Ⅲ





Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
