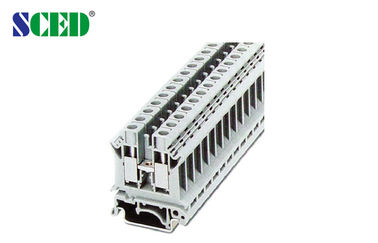

Double Deck Terminal Blocks Din Rail 65A , 10.2mm Wiring Block Connectors

Double Deck Terminal Blocks Din Rail 65A , 10.2mm Wiring Block Connectors

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-10N

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Rated Current: 65A Rated Voltage: 600V
Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev Color: Grey
Deck: Double Decks Type: Din Rail Terminal Blocks,Ground Terminal Blocks, Din Rail Terminal Blocks





Double Deck Terminal Blocks Din Rail 65A , 10.2mm Wiring Block Connectors







Detailed product Description:





■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Deck;  ■Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks





How to order:



Double Deck Terminal Blocks Din Rail 65A , 10.2mm Wiring Block Connectors



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                       Grey

TR-10N

Double Deck Terminal Blocks Din Rail 65A , 10.2mm Wiring Block ConnectorsEnd Cover                      Grey



D-TR-3/16

Double Deck Terminal Blocks Din Rail 65A , 10.2mm Wiring Block ConnectorsFixed Bridge



FBI 10-10        Imax: 76A

Double Deck Terminal Blocks Din Rail 65A , 10.2mm Wiring Block ConnectorsInsertion Bridge



EB 10-10         Imax: 76A

Double Deck Terminal Blocks Din Rail 65A , 10.2mm Wiring Block ConnectorsSeparating Plate



TS-K

Double Deck Terminal Blocks Din Rail 65A , 10.2mm Wiring Block ConnectorsPartition Plate



ATP-TR

Zack Strip                      White

ZB10

Screwdriver

SZS 1.0×4.0

Rail Material

aluminum

Dimensions                             mm

10.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M4 / 1.5-1.8

Stripping Length                          mm

10

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

76 / 16

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category





Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
