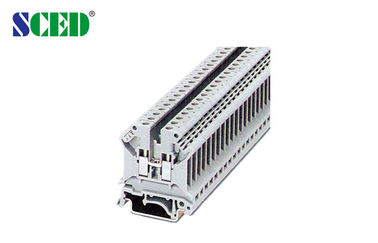

6.2mm Din Rail Terminal Blocks Connector , 600V 30A Electrical Terminal Block

6.2mm Din Rail Terminal Blocks Connector , 600V 30A Electrical Terminal Block

6.2mm Din Rail Terminal Blocks Connector , 600V 30A Electrical Terminal Block

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-5N

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Rated Current: 30A Rated Voltage: 600V
Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev Color: Grey
Deck: Double Decks Type: Din Rail Terminal Blocks,Ground Terminal Blocks, Din Rail Terminal Blocks
Width: 6.2mm Wire Range: 30-10



6.2mm Din Rail Terminal Blocks Connector , 600V 30A Electrical Terminal Block





Detailed product Description:





■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Deck;  ■Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks





How to order:



6.2mm Din Rail Terminal Blocks Connector , 600V 30A Electrical Terminal Block



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                       Grey

TR-5N

6.2mm Din Rail Terminal Blocks Connector , 600V 30A Electrical Terminal BlockEnd Cover                      Grey



D-TR-3/16

6.2mm Din Rail Terminal Blocks Connector , 600V 30A Electrical Terminal BlockFixed Bridge



FBI 10-6        Imax: 41A

6.2mm Din Rail Terminal Blocks Connector , 600V 30A Electrical Terminal BlockInsertion Bridge



EB 10-6        Imax: 32A

6.2mm Din Rail Terminal Blocks Connector , 600V 30A Electrical Terminal BlockSeparating Plate



TS-K

6.2mm Din Rail Terminal Blocks Connector , 600V 30A Electrical Terminal BlockPartition Plate



ATP-TR

Zack Strip                      White

ZB6

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions                             mm

6.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M3 / 0.6-0.8

Stripping Length                          mm

8

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

41 / 6

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category

Ⅲ / Ⅰ





Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
