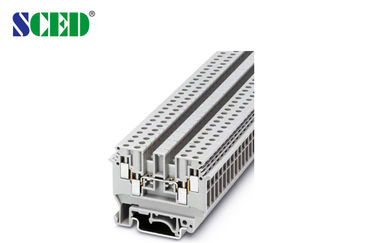

300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODM

300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODM

300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODM

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-4N

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Rated Current: 32A Rated Voltage: 300V
Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev Color: Grey
Deck: Double Decks Type: Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
Width: 6.2mm Wire Range: 24-10



300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODM



Detailed product Description:



300V 32A 6.2mm Compact Din Rail Terminal Blocks, Rail Mounted Electrical Terminal Block AWG: 24-10



Applications:



Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Deck;  ■Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



How to order:



300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODM



Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                       Grey

TR-4N

300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODMEnd Cover                      Grey



D-TR-4

300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODMFixed Bridge



FBRI 10-6        Imax: 34A

300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODMInsertion Bridge



EB  10-6        Imax: 34A

300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODMSeparating Plate



TS-KK3

300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODMPartition Plate





Zack Strip                      White

ZB6

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions                             mm

6.2/63.5/1.5

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52.5

Screw / Torque                           Nm

M3 / 0.6-0.8

Stripping Length                          mm

8

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

32/4

Rated Surge Voltage / Contamination Class    KV / -

6 / 3

Surge Voltage Category









Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
