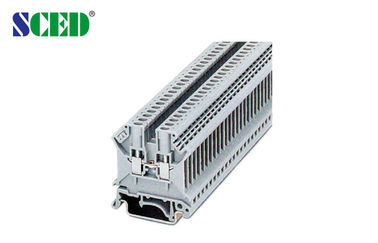

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-3N

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Factory Price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev Color: Grey
Deck: Single Deck Type: Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
Width: 5.2mm Wire Range: 28-12





5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..





Detailed product Description:





■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks





How to order:

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A





Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                       Grey

TR-3N

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20AEnd Cover                      Grey



D-TR-3/16

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20AFixed Bridge



FBI 10-5         Imax: 30A

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20AInsertion Bridge



EBL 10-5        Imax: 24A

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20ASeparating Plate



TS-K

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20APartition Plate



ATP-TR

Zack Strip                      White

ZB5

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions                             mm

5.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M3 / 0.6-0.8

Stripping Length                          mm

8

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

32 / 4

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category



Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
