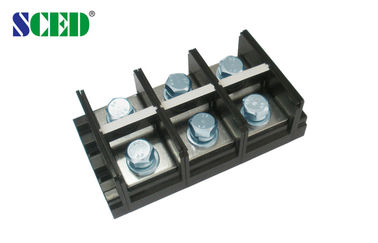

60.00mm 600V 500A Barrier Panel Mount Terminal Block With Right Angle Wire Inlet

60.00mm 600V 500A Barrier Panel Mount Terminal Block With Right Angle Wire Inlet

60.00mm 600V 500A  Barrier Panel Mount Terminal Block With Right Angle Wire Inlet

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR500-00-BM0

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block Pitch: 60.00mm
Number Of Contacts: Any Poles Available Wire Range: 12-28
Rated Voltage: 600V Rated Current: 500A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control


Pitch 60.00mm, 600V 500A, any pole available, High Current Terminal connectors

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
 Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks


How to order:
60.00mm 600V 500A  Barrier Panel Mount Terminal Block With Right Angle Wire Inlet

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 500

600 / 500



Wire Range                       AWG

12-28

12-28



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

1000 /500

1000 /500

1000 / 500

Rated Surge Voltage                 KV

10

10

10

Rated Connecting Capacity           mm2

380

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

30-35

Screw Torque                    mm

M12 / 200-213




60.00mm 600V 500A  Barrier Panel Mount Terminal Block With Right Angle Wire Inlet

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
