| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TP508P-76 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control | Color: | Green |
|---|---|---|---|
| Number Of Contacts: | 2P-16P | Pitch: | 7.62mm |
| Rated Current: | 18A | Rated Voltage: | 300V |
| Type: | Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks | Wire Range: | 12-30 |
| High Light: | power distribution terminal block,power terminal block connector |
||
Pitch 7.62mm Plug In Terminal Block Single Level 300V 18A 2P - 16P
How to order:

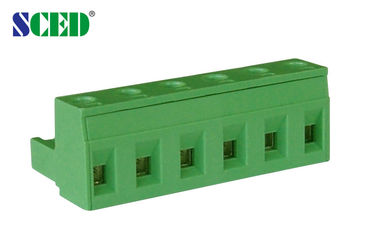

Pitch 7.62mm Female Plug in Terminal Block with Single Level, 300V 18A, 2P-16P
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 18 |
|
300 / 18 |
|
Wire Range AWG |
12-30 |
|
12-30 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
400 / 18 |
630 / 18 |
1000 / 18 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
7 |
||
|
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
